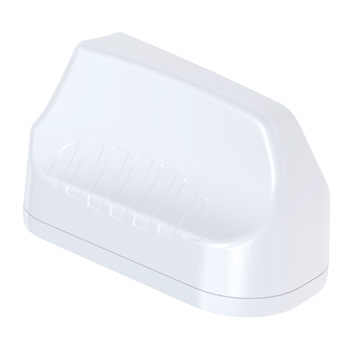

MIMO-3-17 Antenna

MIMO-3-17 Antenna

Key Features:

• 7-in-1 High performance multi frequency 2G/3G/4G/LTE/5G antenna
• 4X4 MIMO LTE, 2X2 MIMO Wi-Fi & GPS / GLONASS
• Ultra-wideband, includes 450 MHz and 3.5 GHz CBRS bands
• Robust and water-resistant antenna (IP 69K)
• Ideal for transportation and marine use
• Multi mounting options for easy installation

Description:

The MIMO-3-17 is a high-performance 7-in-1 multi-frequency antenna housed in a single enclosure, providing four cellular MIMO antennas, two dual-band Wi-Fi antennas, and a GPS/GLONASS antenna. Designed for seamless 2G, 3G, 4G, and emerging 5G connectivity, it supports a wide frequency range from 617 MHz to 2700 MHz, as well as the new 450 MHz and 3.5 GHz CBRS bands. This ultra-wideband performance ensures compatibility with multiple network operators and future cellular technologies up to 3.8 GHz.

Ultra-Wideband Cellular Coverage: Supports frequencies from 617 MHz to 3.8 GHz, covering LTE and 5G applications.

Advanced 4×4 Cellular MIMO Technology: Provides enhanced signal strength, pattern diversity, and omnidirectional coverage.

Dual-Band 2×2 MIMO Wi-Fi Antennas: Two independent Wi-Fi antennas support concurrent 2.4 GHz and 5 GHz operation for improved wireless performance.

Integrated GPS/GLONASS Antenna: High-performance active GPS system for accurate positioning, operational down to -40°C.

Optimised for Transportation & Marine Use: Engineered to meet the rigorous demands of commercial vehicles, marine, and industrial applications.

Futureproof Connectivity: Ensures long-term compatibility with evolving cellular, Wi-Fi, and IoT applications.

Superior Radiation Performance: Designed for an optimal balance between omnidirectionality, diversity, and signal propagation.

The MIMO-3-17 is the ideal solution for transportation, marine, M2M, and IoT applications, delivering exceptional performance, durability, and future-ready connectivity across multiple frequency bands.

Ideal Applications:

• Transport broadband and Wi-Fi distribution, automation and telemetry for buses, utility, trucks and public safety vehicles
• Farming & agricultural automation such as M2M & IoT
• Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)
• Industrial factory automation, robotic machinery and other M2M systems telemetry
• Broadband cellular to Wi-Fi distribution for marine / boats (inland and near coastal vessels)

Download the datasheet here
