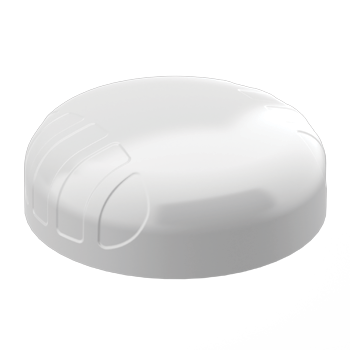

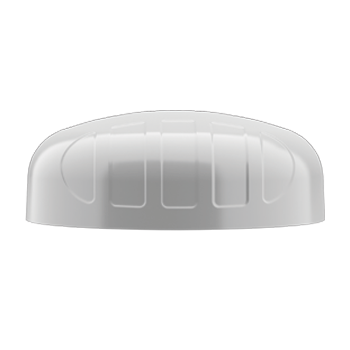

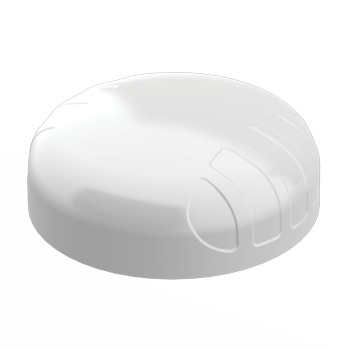

PUCK-2-W Antenna

• 2-in-1 LTE high performance multi frequency
• 2G/3G/4G/LTE/5G antenna
• LTE/5G (2x2 MIMO)
• Wideband – covers wide frequency band, incl. 3.5 GHz CBRS band
• Ground plane independent
• Robust, vandal resistant and waterproof (IP 69K)
• Ideal for transportation, marine and IoT/M2M use
• Ultra-versatile mounting options for easy installation

Description:

Poynting’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-2 is a 2-in-1 antenna system within a single enclosure, providing reliable and future-proof connectivity for 5G and LTE networks.

Wideband Cellular Coverage: Features 2x2 MIMO 5G/LTE antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.

The PUCK-2 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G and LTE connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable.
