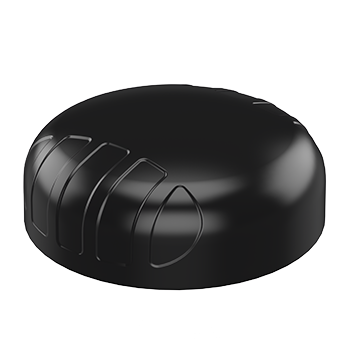

PUCK-4 Antenna

PUCK-4 Antenna

Key Features:

• 3-in-1 high performance multi-frequency antenna
• 2G/3G/4G/LTE/5G antenna
• LTE/5G (2x2 MIMO) & GPS/GLONASS
• Wideband frequency range, incl. the CBRS band
• Ground plane independent antenna
• Robust, vandal resistant and waterproof antenna (IP 69K rating)
• Ideal for transportation, marine and IoT/M2M use
• Ultra-versatile mounting options for easy installation

Description:

Poynting’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-4 is a 3-in-1 antenna system within a single enclosure, providing reliable and future-proof connectivity for 5G, LTE, and GPS applications.

Wideband Cellular Coverage: Features 2x2 MIMO Cellular antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
High-Precision GPS/GLONASS Antenna: Active GPS system ensures accurate positioning, operational at temperatures as low as -40ºC.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.

The PUCK-4 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, and GPS connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable.
