WLAN-60 Antenna

WLAN-60 Antenna

Key Features:

• Dual-band 2.4 GHz and 5 GHz Wi-Fi antenna
• Directional antenna with high gain
• Complaint with IEEE 802.11b/g/n/ac and 802.11ax wireless standard
• Covers the 3.5 GHz CBRS band for future 5G applications
• Vandal and water-resistant enclosure (IP 65)

Description:

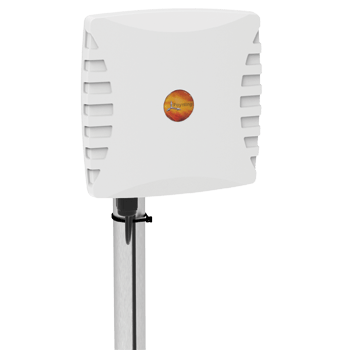

The WLAN-60 is a high-performance dual-band Wi-Fi antenna developed by POYNTING Antennas. Designed for seamless connectivity, it supports both older and modern dual-band Wi-Fi technologies, ensuring flexibility and superior performance in high-interference environments. This linear high-gain antenna is ideal for point-to-point links, even in RF-noisy and cluttered conditions.

Dual-Band Wi-Fi Connectivity: Operates in 2.4 GHz and 5 GHz bands for optimized network performance.
High-Gain Performance: Provides 12 dBi gain at 2.4 GHz and 16 dBi gain at 5 GHz for strong and stable connections.
CBRS Band Support: Covers the 3.5 GHz CBRS band with a peak gain of 10 dBi, making it futureproof for 5G applications.
Point-to-Point Link Optimisation: Designed for use in environments with high RF noise and congestion.
Durable & Weather-Resistant Housing: Constructed from high-impact ABS plastic, resistant to acids and industrial chemicals.
Optimised Cable Management: Features an SMA female connector with a bypass gland to eliminate connector losses and waterproofing concerns.
Indoor & Outdoor Versatility: Suitable for industrial plants, warehouses, production facilities, and outdoor installations.

The WLAN-60 is the ideal solution for enhancing Wi-Fi performance in high-density environments, delivering reliable, high-gain connectivity for current and future wireless applications.

Ideal Applications:

• Small business
• Production facilities and factories
• Areas with large amounts of machinery (cluttered environments)
• Building sites and open cast mines
• M2M and IoT applications

Download the datasheet here
