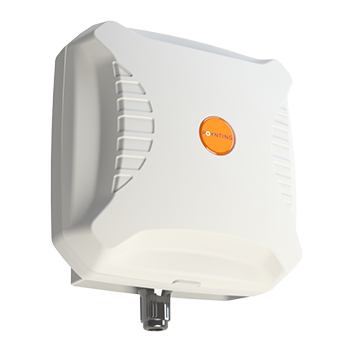

EPNT-1-V2 Antenna

EPNT-1-V2 Antenna

Key Features:

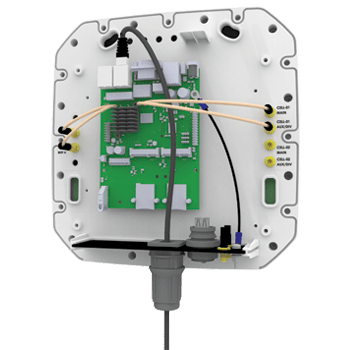

• An all-in-one solution that integrates high-performance antennas with your router into a single, rugged outdoor enclosure, simplifying installation
• Minimal RF cable losses, as there is no need for lengthy RF cables to connect to your router, enhancing overall antenna performance
• Wideband 4x4 MIMO 4G/5G antennas
• 2x2 MIMO dual-band 2.4 GHz and 5 – 7.2 GHz Wi-Fi antennas
• Cross-polarised antennas for improved performance
• IP65 weather/dust and vandal-resistant enclosure

Description:

POYNTING Antennas introduces the ePoynt series, an innovative antenna enclosure range designed to transform your LTE/5G router into high-performance Customer Premises Equipment (CPE). The EPNT-1 enclosure supports routers up to 185 x 145 x 45 mm³, delivering enhanced signal stability and throughput.

Seamless Router Integration: Designed to accommodate various LTE/5G router modules for easy plug-and-play setup.
Wideband 4×4 MIMO Antennas: Covers 617–4200 MHz, ensuring strong LTE & 5G connectivity with up to 3.8 dBi peak gain.
Omni-Directional Wi-Fi Support: Built-in dual-band Wi-Fi antennas (2.4 GHz & 5–7.2 GHz) for reliable 2×2 MIMO performance.
Optimised for Urban Deployments: Cross-polarised antennas enhance signal stability in built-up areas with multiple base stations.
Rugged & Weatherproof Design: IP65-rated enclosure ensures durability in harsh outdoor conditions.

The EPNT-1 is the ideal solution for LTE & 5G deployments, providing a powerful, all-in-one antenna and enclosure for enhanced connectivity.

Ideal Applications:

• Outdoor antenna for Fixed Wireless Access (FWA)
• Industrial and commercial 5G/LTE deployment
• Oil & Gas communication systems
• Consumer 5G/LTE internet connectivity
• Urban and rural household reception enhancement

Download the datasheet here
