EPNT-2-V2 Antenna

EPNT-2-V2 Antenna

Key Features:

• Antenna enclosure with high performance antennas
• New advanced metamaterial technology
• Exceptional high gain performance over the main 4G/5G bands
• 2x2 MIMO dual-band 2.4 GHz and 5 GHz Wi-Fi antennas
• Cross-polarised antennas for improved performance
• Weather, dust and vandal resistant enclosure (IP 65)

Description:

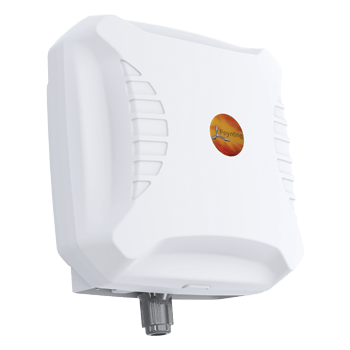

Poynting Antennas introduces its all-new antenna enclosure range, the ePoynt® series. The ePoynt® enclosures are designed to fit a variety of router modules, transforming the antenna enclosure into a Customer Premises Equipment (CPE) – just add your own 4G/5G router. The ePoynt® enclosure can accommodate routers up to the size of 185 x 145 x 45 mm³. The EPNT-2 antenna enclosure uses our world renowned Artificial Magnetic Conductor (AMC) technology from our XPOL-2-5G antenna. Providing a cross-polarised, high gain, uni-directional antenna that offers wideband coverage from 617 to 960 MHz and 1710 to 4200 MHz, making it ideal for 4G & 5G implementations. The EPNT-2 contains four cross-polarised cellular antennas, with two uni-directional antennas offering a peak gain of 11 dBi and two omni-directional antennas with a peak gain of 5 dBi. Making it ideal for 4x4 MIMO or dual 2x2 MIMO routers. The EPNT-2 also includes two omni-directional dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2x2 MIMO. The combination of our uni-directional XPOL-2-5G antenna with a world class router delivers exceptional performance along with increased data throughput. The EPNT-2 enclosure was also designed to withstand adverse weather condition, making the antenna weatherproof and waterproof with an IP65 rating.
