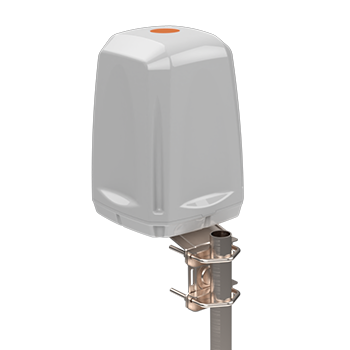

EPNT-4-19 Antenna

EPNT-4-19 Antenna

Key Features:

• An all-in-one solution that integrates high-performance antennas with your router into a single, rugged outdoor enclosure, simplifying installation
• Minimal RF cable losses, as there is no need for lengthy RF cables to connect to your router, enhancing overall antenna performance
• Wideband 5G/LTE antennas up to 4x4 MIMO
• Backwards compatible with 2G/3G/4G technologies
• 2x2 or 4x4 MIMO Wi-Fi antennas for 2.4 GHz and 5 to 7.2 GHz
• Available router size of up to 140 x 120 x 50 mm³

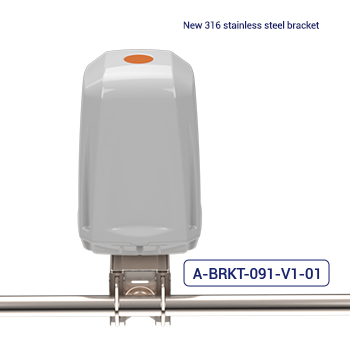

• 316 stainless steel bracket included for marine applications
• Weather, dust and vandal resistant enclosure (IP67)

Description:

POYNTING introduces the EPNT-4, an advanced omni-directional Customer Premises Equipment (CPE) solution that integrates multiple high-performance antennas into a single enclosure. Designed for versatility, the EPNT-4 enhances 5G/4G and Wi-Fi performance, making it ideal for reliable communication in demanding environments.

Comprehensive Multi-Antenna System: Features 4×4 5G/4G MIMO, 4×4 Wi-Fi MIMO, and an additional GPS antenna for enhanced connectivity.
Wideband Cellular Coverage: Supports 617–4200 MHz, ensuring excellent gain across major 5G/4G bands for superior multi-carrier aggregation (CA).
High-Performance Wi-Fi Antennas: Dual-band operation covering 2.4 GHz & 5–7.2 GHz with 2.2 dBi peak gain for 4×4 MIMO connectivity.
Cross-Polarised Antenna Elements: Improves signal reception, enhancing overall performance and data throughput.
Optimised for Harsh Environments: Fully saltwater-protected and resistant to corrosive chemicals, thanks to its UV-stable ASA radome material.
Rugged & Weatherproof Design: Built to withstand extreme conditions with IP67 & IK10 ratings, ensuring durability and vandal resistance.

The EPNT-4 is the ideal solution for robust, high-performance connectivity, providing seamless 5G/4G and Wi-Fi integration in even the most challenging environments.

Ideal Applications:

• Industrial factory automation, robotic machinery and other M2M systems telemetry
• Broadband cellular to Wi-Fi distribution for marine / boats (inland and near coastal vessels)
• Consumer 5G/4G internet connectivity
• Farming & agricultural automation such as M2M & IoT
• Outdoor antenna for Fixed Wireless Access (FWA)
• Industrial and commercial 5G/4G deployment

Download the datasheet here
