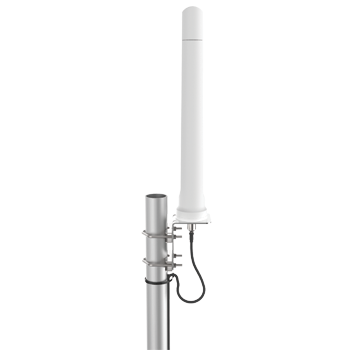

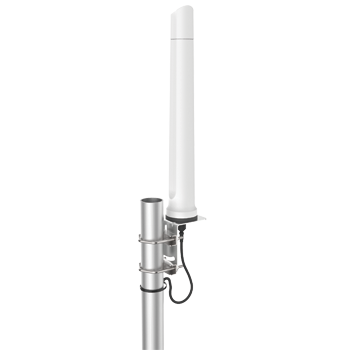

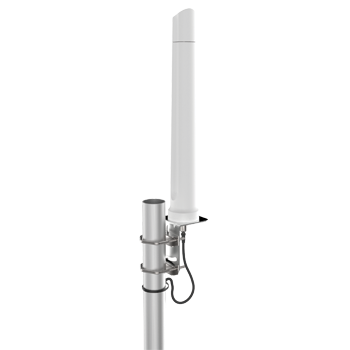

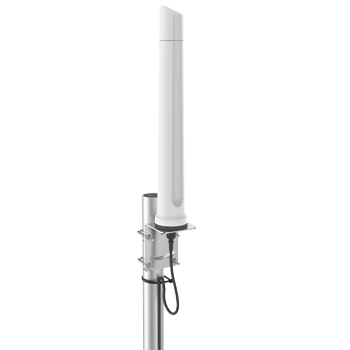

OMNI-296-V2 Antenna

OMNI-296-V2 Antenna

Key Feature:

• Dual-band Wi-Fi antenna for 2.4 GHz and 4.9 to 7.2 GHz
• Omni-directional antenna with medium gain
• Complaint with IEEE 802.11ac/ax/be/b/g/n wireless standard
• Covers the 3.5 GHz CBRS band for future 5G applications
• Vandal and water-resistant enclosure (IP 65)

Description:

The OMNI-296 is a high-performance dual-band Wi-Fi omni-directional antenna, developed by POYNTING Antennas. Designed for seamless connectivity with both older and modern dual-band Wi-Fi technologies, this antenna helps resolve channel saturation and enhance network performance. Its robust construction and broad frequency coverage make it ideal for high-density and RF-noisy environments.

Dual-Band Wi-Fi Coverage: Operates across 2.4 GHz, 3.3 – 4.2 GHz, and 5 – 7.2 GHz, ensuring maximum radio spectrum utilization.
High-Gain Performance: Provides 7 dBi gain in the 2.4 GHz band, 10 dBi gain in the 5 GHz band, and 8 dBi peak gain for the 3.5 GHz CBRS band.
Omni-Directional Design: Ensures 360° coverage, making it suitable for point-to-point links in cluttered RF environments.
CBRS & Future 5G Ready: Supports the 3.5 GHz CBRS band, preparing for next-generation 5G applications.
Durable Industrial Construction: Made from high-impact ABS plastic, resistant to acids and chemicals found in industrial environments.
Versatile Deployment: Ideal for commercial, industrial, and high-interference environments, ensuring stable Wi-Fi connectivity.
Easy Integration: Equipped with an N-Type female connector, allowing flexible cable connections for customized installations.

The OMNI-296 is a versatile and future-ready Wi-Fi antenna, providing high-gain omni-directional coverage for demanding industrial, commercial, and high-density network environments.

Ideal Applications:

• Small business
• Production facilities and factories
• Areas with large amounts of machinery (cluttered environments)
• Building sites and open-cast mines
• M2M and IoT applications

Download the datasheet here
