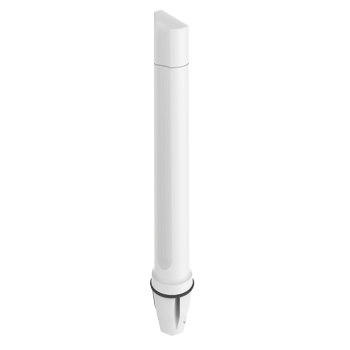

OMNI-707 Antenna

OMNI-707 Antenna

Key Features:

• Medium gain, omni-directional Wi-Fi antenna
• Suitable for 2.4 GHz and 5 GHz Wi-Fi deployment
• Compliant with IEEE 802.11b/g/n and 802.11ac wireless standard
• Dual-port configuration to connect multiple Wi-Fi ports
• Ideal for IoT and M2M applications
• Highly rugged and low-profile design
• High pressure water and dust ingress protected enclosure (IP69K)

Description:

The OMNI-707 is a high-performance omni-directional Wi-Fi antenna developed by POYNTING Antennas as part of the new “Rhyno” antenna range. Designed for harsh environments, this antenna ensures reliable and stable Wi-Fi connectivity across both 2.4 GHz and 5 – 6 GHz bands. Its rugged enclosure and superior pattern control make it an excellent choice for demanding applications.

Dual-Band Wi-Fi Connectivity: Supports 2.4 GHz and 5 – 6 GHz Wi-Fi bands for improved performance and flexibility.
High-Gain Performance: Delivers 5.5 dBi peak gain, ensuring strong and reliable wireless connections.
Omni-Directional Design: Provides 360° signal coverage for optimal distribution and minimal dead zones.
Superior Pattern Control: Ensures balanced performance across all frequency bands for enhanced stability.
Rugged & Weatherproof Design: Features an IP69K and IK10-rated enclosure for extreme durability in harsh environmental conditions.
Versatile Deployment: Ideal for resolving Wi-Fi channel saturation, supporting dual-band Wi-Fi technology, and operating in RF-noisy environments.
Flexible Connectivity Options: Equipped with two 0.3 m pigtail N-Type female connectors, allowing for custom cable configurations.

The OMNI-707 is a robust and future-ready Wi-Fi antenna, designed to deliver exceptional wireless performance in industrial, commercial, and outdoor applications.

Ideal Applications:

• Smart Utilities: Smart Power Metering, Gas & Water Metering
• Smart Environmental & Water Systems
• Smart Buildings: Climate control, access control, security, irrigation
• Industrial factory automation and M2M systems

Download the datasheet here
