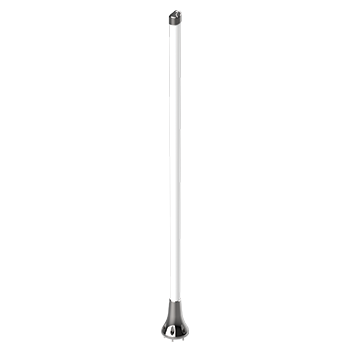

OMNI-904 Antenna

OMNI-904 Antenna

Key Features:

• High performance, omni-directional marine & coastal antenna
• 4x4 MIMO capability for improved performance
• Combination of low & high gain omni-directional antennas
• Covers contemporary LTE/5G bands from 617 - 4200 MHz
• UV and saltwater protected for marine and coastal conditions
• Robust and all-weather proof for harsh conditions at sea (IP 68)
• Optional 316 stainless steel mounting bracket available

Description:

The OMNI-904 is a high-performance, ultra-wideband antenna designed to provide seamless connectivity across all contemporary LTE/5G frequency bands. Covering a broad spectrum from 617 to 4200 MHz, this antenna ensures superior signal reception with well-balanced gain across all frequencies. Its advanced design and rugged construction make it ideal for marine and coastal applications.

Ultra-Wideband Frequency Coverage: Supports LTE/5G bands from 617 to 4200 MHz, including LTE Band 71 and CBRS bands from 3400 to 4200 MHz.

True Omni-Directional 4×4 MIMO: Features a combination of two low-gain and two high-gain omni-directional antennas for optimal pattern control.

Superior Pattern Diversity: Ensures stable and consistent signal performance across all frequency bands, enhancing connectivity.

Marine-Grade Durability: Fully saltwater protected with a robust fiberglass radome, designed to withstand highly corrosive environments.

IP68 Protection Rating: Offers complete resistance against dust and water ingress, ensuring functionality in extreme marine conditions.

Future-Proof Design: Optimised for current and next-generation LTE and 5G networks, guaranteeing long-term connectivity.

The OMNI-904 is engineered for global use, providing reliable, high-performance signal reception for marine, coastal, and inland applications requiring robust and future-ready LTE/5G connectivity.

Ideal Applications:

• Marine applications: Super Yachts / Boats / Ferries
• Increase system transmission reliability
• Industrial and commercial LTE/5G deployment
• Enhanced LTE/4G and 5G reception
• High-end industrial grade router applications
• Agricultural and farming LTE/5G data distribution

Download the datasheet here
