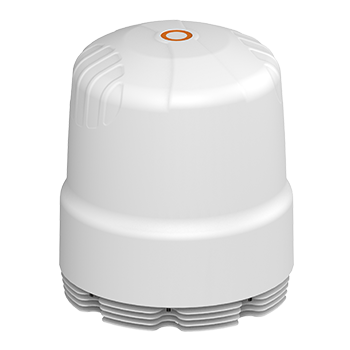

RIPPLE-16 Antenna

• An all-in-one solution that integrates high-performance antennas with your router into a single, rugged outdoor enclosure, simplifying installation
• Minimal RF cable losses, as there is no need for lengthy RF cables to connect to your router, enhancing overall antenna performance
• High performance, omni-directional marine & coastal antenna
• Up to 8 x 8 MIMO capability for improved performance
• Covers contemporary 5G/LTE band from 617 to 7200 MHz
• Innovative heat sink design for improved temperature regulation
• UV and saltwater protected for marine and coastal applications
• IP65 weather/dust resistant enclosure


Description:

POYNTING Antennas introduces the Ripple series, an all-new marine antenna enclosure range designed to expand on the existing WaveHunter series. The Ripple enclosure transforms traditional networking setups into high-performance Customer Premises Equipment (CPE) by accommodating various LTE/5G routers, ensuring reliable connectivity in marine and coastal environments.

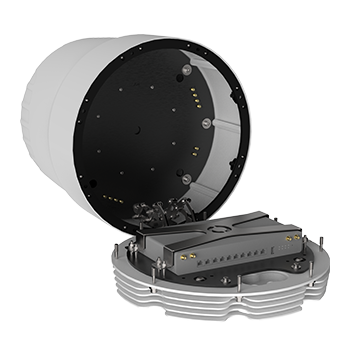

Versatile Router Integration: Supports routers up to 300 x 250 x 110 mm³, mounted directly onto the base.
High-Performance Omni-Directional Antenna Arrays:

• RIPL-16: Features 16 cross-polarised omni-directional antennas (8 vertically & 8 horizontally polarised) for enhanced performance.
• RIPL-8: Includes 8 cross-polarised omni-directional antennas (4 vertically & 4 horizontally polarised), offering a compact yet powerful solution.

Wideband Frequency Coverage: Operates from 617 to 7200 MHz with a peak gain of 9.5 dBi, making it ideal for multi-router LTE & 5G bonded and aggregated deployments.
Marine-Grade Weatherproof Design: Engineered to withstand harsh marine and coastal conditions with an IP65 rating for superior durability.

The Ripple series is designed specifically for **marine and coastal applications**, ensuring robust, uninterrupted LTE and 5G connectivity even in the most challenging environments.

Ideal Applications:
