SWIRL-4-CPE Antenna

X-Polarised, Omni-Directional 5G/LTE, Multi MIMO Antenna Array 617 - 6000MHz, 6dBi; Cellular 4x4 MIMO + Wi-Fi 4x4 (MIMO) + 1 x GNSS

• An all-in-one solution that integrates high-performance antennas with your router into a single, rugged outdoor enclosure, simplifying installation
• Minimal RF cable losses, as there is no need for lengthy RF cables to connect to your router, enhancing overall antenna performance
• High performance, omni-directional Maritime & Mobility Antenna
• Up to 4 x 4 MIMO capability for improved performance
• Covers contemporary 5G/LTE band from 617 to 6000 MHz
• Innovative heat sink design for improved temperature regulation
• E-Mark certified ensuring compliance, safety, and performance in automotive applications
• UV and saltwater protected for marine and coastal applications
• IP69K weather/dust resistant enclosure

Description:

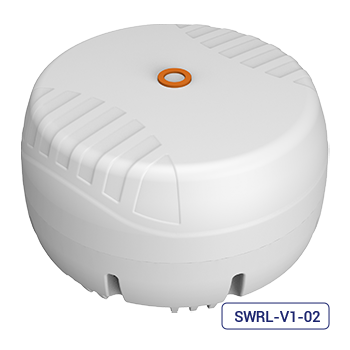

The SWIRL-4-02 (CPE) builds upon the antenna array of the SWIRL-4-01 by adding an aluminum base, known as the SWIRL-BASE.
The SWIRL-BASE serves as an enclosure for 5G routers, transforming the SWIRL-4-02 into a Customer Premises Equipment (CPE) device, where the router and antennas are combined into a single unit.

Ideal Applications:

• Reliable connectivity for ships, boats, and other marine vessels.
• Stable connections for remote sites and infrastructure monitoring.
• Efficient data transmission for various Internet of Things (IoT) applications in challenging environments.
• Enhanced network performance for vehicles and other mobile platforms.
• Robust communication systems for emergency response and public safety services.

Download the datasheet here
