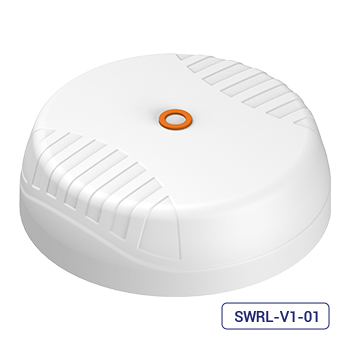

SWIRL-8 Antenna

SWIRL-8 Antenna

Key Features:

• High performance, omni-directional Maritime & Mobility Antenna
• Up to 8 x 8 MIMO capability for improved performance
• Covers contemporary 5G/LTE band from 617 to 6000 MHz
• Innovative heat sink design for improved temperature regulation
• UV and saltwater protected for marine and coastal applications
• IP69K weather/dust resistant enclosure

Description:

The SWIRL-8-01 is the antenna-only version of the SWIRL that integrates:

• Eight cross-polarized cellular antennas: covering a wide range of LTE and 5G frequency bands from 617 to 6000 MHz
• One dual-band GNSS antenna: Covering GPS L1 and L5 bands for fast and precise positioning
• Four dual-band Wi-Fi antennas: Supporting 2.4 GHz and 5 to 7.2 GHz bands for optimal wireless coverage

Additional Benefits:

1. Router Agnostic: SWIRL-8-01 is a great choice for users who prefer the flexibility to use any router. The antenna system is compatible with most commercially available routers, offering adaptability and future-proofing for evolving networking needs. This allows users to easily swap routers or upgrade them without replacing the antenna.
2. Custom Deployment: In environments where the user already has an established setup or specific router preferences, the antenna-only configuration offers seamless integration. It allows users to take full advantage of their preferred networking hardware without being constrained to any one system
3. Compact Design: SWIRL-8-01 features a compact design with dimensions of 382 mm / 15.04 inch in diameter and 127 mm / 5 inch in height.
4. Additionally, the SWIRL can be transformed into a Customer Premises Equipment (CPE) device by incorporating the SWIRL-BASE. This cast aluminium base is specifically designed to house 5G routers, available in sizes of 231 x 193 x 50 mm / 9.094 x 7.60 x 1.97 inch or 293.5 x 148.5 x 50 mm / 11.56 x 5.85 x 1.97 inch. Installing the router within the base reduces coaxial cable runs, thereby improving performance by minimizing signal loss.
